Distributed Loads

Defining Time-Dependent Distributed Loads

The prescribed magnitude of a distributed load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. If different variations are required for different loads, each load can refer to its own amplitude definition.

Modifying Distributed Loads

Distributed loads can be added, modified, or removed as described in About Loads.

Improving the Rate of Convergence in Large-Displacement Implicit Analysis

In large-displacement analyses in Abaqus/Standard some distributed load types introduce unsymmetric load stiffness matrix terms. Examples are hydrostatic pressure, pressure applied to surfaces with free edges, Coriolis force, rotary acceleration force, and distributed edge loads and surface tractions modeled as follower loads. In such cases using the unsymmetric matrix storage and solution scheme for the analysis step might improve the convergence rate of the equilibrium iterations. See Defining an Analysis for more information on the unsymmetric matrix storage and solution scheme.

Defining Distributed Loads in a User Subroutine

Nonuniform distributed loads such as a nonuniform body force in the X-direction can be defined by means of user subroutine DLOAD in Abaqus/Standard or VDLOAD in Abaqus/Explicit. When an amplitude reference is used with a nonuniform load defined in user subroutine VDLOAD, the current value of the amplitude function is passed to the user subroutine at each time increment in the analysis. DLOAD and VDLOAD are not available for surface tractions, edge tractions, or edge moments.

In Abaqus/Standard nonuniform distributed surface tractions, edge tractions, and edge moments can be defined by means of user subroutine UTRACLOAD. User subroutine UTRACLOAD allows you to define a nonuniform magnitude for surface tractions, edge tractions, and edge moments, as well as nonuniform loading directions for general surface tractions, shear tractions, and general edge tractions.

Nonuniform distributed surface tractions, edge tractions, and edge moments are not currently supported in Abaqus/Explicit.

When the user subroutine is used, the external work is calculated based only on the current magnitude of the distributed load since the incremental value for the distributed load is not defined.

Specifying the Region to Which a Distributed Load Is Applied

As discussed in About Loads, distributed loads can be defined as element-based or surface-based. Element-based distributed loads can be prescribed on element bodies, element surfaces, or element edges. Surface-based distributed loads can be prescribed directly on geometric surfaces or geometric edges.

Three types of distributed loads can be defined: body loads, surface loads, and edge loads. Distributed body loads are always element-based. Distributed surface loads and distributed edge loads can be element-based or surface-based. The regions on which each load type can be prescribed are summarized in Table 1 and Table 2. In Abaqus/CAE distributed loads are specified by selecting the region in the viewport or from a list of surfaces. In the Abaqus input file different options are used depending on the type of region to which the load is applied, as illustrated in the following sections.

Table 1. Regions on which the different load types can be prescribed.
Load type	Load definition	Input file region
Body loads	Element-based	Element bodies
Surface loads	Element-based	Element surfaces
Surface loads	Surface-based	Geometric element-based surfaces
Edge loads (including beam line loads)	Element-based	Element edges
Edge loads (including beam line loads)	Surface-based	Geometric edge-based surfaces

Table 2. Regions in Abaqus/CAE on which the different load types can be prescribed.
Load type	Load definition	Abaqus/CAE region
Body loads	Element-based	Volumetric bodies
Surface loads	Element-based	Surfaces defined as collections of geometric faces or element faces (excluding analytical rigid surfaces)
Surface loads	Surface-based
Edge loads (including beam line loads)	Element-based	Surfaces defined as collections of geometric edges or element edges
Edge loads (including beam line loads)	Surface-based

Applying Electric Machine Loads

You can apply loads from one or more two-dimensional electromagnetic analyses to the stator surface of an electric machine in Abaqus/Standard to perform a three-dimensional noise and vibration analysis.

You must specify the stator three-dimensional surface name, the number of electric machine teeth, and the number of surface slices on which the electromagnetic analyses were conducted. In addition, you must specify the stator orientation and the width of each slice.

Abaqus/Standard expects the electromagnetic loads in the form of radial and tangential two-dimensional forces and compensating torque at a certain operating point of the electrical machine. The electric machine operating point is defined by the rotor torque and rotational speed (revolutions per time). You must specify each of these forces and torques at certain space and time orders for each slice.

You can specify the electric machine load as a separate single load or inside a load case.

Abaqus/Standard converts the electromagnetic forces and torques internally into distributed surface loads and concentrated force loads on the stator cylindrical surfaces of the electric machine. It also splits the user-specified stator surface internally into subsurfaces on which these internally converted loads are applied. Abaqus/Standard bases the subsurfaces creation on the number of teeth and the number of slices. The loads on the subsurfaces of a given slice differ only in phase.

Input File Usage

Use the following option in the model data to define an electric machine property:

*ELECTRIC MACHINE PROPERTY, NAME=EMP-Name, SURFACE=Surface-Name

Input File Usage

Use the following option in the step data to define an electric machine load:

*ELECTRIC MACHINE LOAD, PROPERTY=EMP-Name

Body Forces

Body loads, such as gravity, centrifugal, Coriolis, and rotary acceleration loads, are applied as element-based loads. The units of a body force are force per unit volume.

The distributed body load types that are available in Abaqus, along with the corresponding load type labels, are listed in Table 3 and Table 4.

Table 3. Distributed body load types.
Load description	Load type label for element-based loads
Body force in global X-, Y-, and Z-directions	BX, BY, BZ
Nonuniform body force in global X-, Y-, and Z-directions	BXNU, BYNU, BZNU
Body force in radial and axial directions (only for axisymmetric elements)	BR, BZ
Nonuniform body force in radial and axial directions (only for axisymmetric elements)	BRNU, BZNU
Viscous body force in global X-, Y-, and Z-directions (available only in Abaqus/Explicit)	VBF
Stagnation body force in global X-, Y-, and Z-directions (available only in Abaqus/Explicit)	SBF
Gravity loading	GRAV
Centrifugal load (magnitude is input as $ρ ω^{2}$ , where $ρ$ is the mass density per unit volume and $ω$ is the angular velocity)	CENT
Centrifugal load (magnitude is input as $ω^{2}$ , where $ω$ is the angular velocity)	CENTRIF
Coriolis force	CORIO
Rotary acceleration load	ROTA
Rotordynamic load	ROTDYNF
Porous drag load (input is porosity of the medium)	PDBF

Table 4. Distributed body load types in Abaqus/CAE.
Load description	Abaqus/CAE load type
Body force in global X-, Y-, and Z-directions	Body force
Nonuniform body force in global X-, Y-, and Z-directions	Body force
Body force in radial and axial directions (only for axisymmetric elements)
Nonuniform body force in radial and axial directions (only for axisymmetric elements)
Viscous body force in global X-, Y-, and Z-directions (available only in Abaqus/Explicit)	Not supported
Stagnation body force in global X-, Y-, and Z-directions (available only in Abaqus/Explicit)	Not supported
Gravity loading	Gravity
Centrifugal load (magnitude is input as $ρ ω^{2}$ , where $ρ$ is the mass density per unit volume and $ω$ is the angular velocity)	Not supported
Centrifugal load (magnitude is input as $ω^{2}$ , where $ω$ is the angular velocity)	Rotational body force
Coriolis force	Coriolis force
Rotary acceleration load	Rotational body force
Rotordynamic load	Rotordynamic load
Porous drag load (input is porosity of the medium)	Porous drag body force

Specifying General Body Forces

You can specify body forces on any elements in the global X-, Y-, or Z-direction. You can specify body forces on axisymmetric elements in the radial or axial direction.

Input File Usage

Use the following option to define a body force in the global X-, Y-, or Z-direction:

DLOAD
element number or element set, load type label, magnitude

where load type label is BX, BY, BZ, BXNU, BYNU, or BZNU.

Use the following option to define a body force in the radial or axial direction on axisymmetric elements:

DLOAD
element number or element set, load type label, magnitude

where load type label is BR, BZ, BRNU, or BZNU.

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Body force for the Types for Selected Step

Specifying Viscous Body Force Loads in Abaqus/Explicit

Viscous body force loads are defined by

f_{v} = - c_{vb} (v - v_{ref}) V_{e},

where $f_{v}$ is the viscous force applied to the body; $c_{v b}$ is the coefficient of viscosity, given as the magnitude of the load; $v$ is the velocity of the point on the body where the force is being applied; $v_{r e f}$ is the velocity of the reference node; and $V_{e}$ is the element volume.

Viscous body force loading can be thought of as mass-proportional damping in the sense that it gives a damping contribution proportional to the mass for an element if the coefficient $c_{v b}$ is chosen to be a small value multiplied by the material density $ρ$ (see Material Damping). Viscous body force loading provides an alternative way to define mass-proportional damping as a function of relative velocities and a step-dependent damping coefficient.

Input File Usage

Use the following option to define a viscous body force load:

DLOAD, REF NODE=reference_node
element number or element set, VBF, magnitude

Abaqus/CAE Usage

Viscous body force loads are not supported in Abaqus/CAE.

Specifying Stagnation Body Force Loads in Abaqus/Explicit

Stagnation body force loads are defined by

f_{s} = - c_{sb} {(v - v_{ref})}^{2} V_{e},

where

f_{s}

is the stagnation body force applied to the body;

c_{s b}

is the factor, given as the magnitude of the load;

v

is the velocity of the point on the body where the body force is being applied;

v_{r e f}

is the velocity of the reference node; and

V_{e}

is the element volume. The coefficient

c_{s b}

should be very small to avoid excessive damping and a dramatic drop in the stable time increment.

Input File Usage

Use the following option to define a stagnation body force load:

DLOAD, REF NODE=reference_node
element number or element set, SBF, magnitude

Abaqus/CAE Usage

Stagnation body force loads are not supported in Abaqus/CAE.

Specifying Gravity Loading

Gravity loading (uniform acceleration in a fixed direction) is specified by using the gravity distributed load type and giving the actual magnitude of the load. The direction of the gravity field is specified by giving the components of the gravity vector in the distributed load definition. Abaqus uses the user-specified material density (see Density), together with the magnitude and direction, to calculate the loading. The magnitude of the gravity load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. However, the direction of the gravity field is always applied at the beginning of the step and remains fixed during the step.

The gravity load can be applied automatically to the entire model. Omit the element number or element set to automatically collect all elements in the model that have mass contributions (including point mass elements but excluding rigid elements) in an element set called _Whole_Model_GRAV_Elset, and apply the gravity loads to the elements in this element set.

When gravity loading is used with substructures, the density must be defined and unit gravity load vectors must be calculated when the substructure is created (see Generating Substructures).

For beam elements the resultant force for gravity loading is always applied such that it passes through the origin of the beam section's local coordinate system, independent of the location of this origin relative to the centroid of the section.

Input File Usage

Use the following option to define a gravity load:

DLOAD
element number or element set (or blank), GRAV, actual magnitude of gravity load, comp1, comp2, comp3

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Gravity for the Types for Selected Step

Specifying Loads due to Rotation of the Model in Abaqus/Standard

Centrifugal loads, Coriolis forces, rotary acceleration, and rotordynamic loads can be applied in Abaqus/Standard by specifying the appropriate distributed load type in an element-based distributed load definition. These loading options are primarily intended for replicating dynamic loads while performing analyses other than implicit dynamics using direct integration (Dynamic Stress/Displacement Analysis). In an implicit dynamic procedure inertia loads due to rotations come about naturally due to the equations of motion. Applying distributed centrifugal, Coriolis, rotary acceleration, and rotordynamic loads in an implicit dynamic analysis might lead to nonphysical loads and should be used carefully.

These loads can be applied automatically to the entire model. Omit the element number or element set to automatically collect all applicable elements in the model into an element set called _Whole_Model_xxx_Elset, where xxx is the load type, and apply the load to the elements in this element set.

Centrifugal Loads

Centrifugal load magnitudes can be specified as $ω^{2}$ , where $ω$ is the angular velocity in radians per time. Abaqus/Standard uses the specified material density (see Density), together with the load magnitude and the axis of rotation, to calculate the loading. Alternatively, a centrifugal load magnitude can be given as $ρ ω^{2}$ , where $ρ$ is the material density (mass per unit volume) for solid or shell elements or the mass per unit length for beam elements and $ω$ is the angular velocity in radians per time. This type of centrifugal load formulation does not account for large volume changes. The two centrifugal load types will produce slightly different local results for first-order elements; $ρ ω^{2}$ uses a consistent mass matrix, and $ω^{2}$ uses a lumped mass matrix in calculating the load forces and load stiffnesses. The output variables for these two centrifugal load types are CENTMAG and CENTRIFMAG, respectively.

The magnitude of the centrifugal load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. However, the position and orientation of the axis around which the structure rotates, which is defined by giving a point on the axis and the axis direction, are always applied at the beginning of the step and remain fixed during the step.

Input File Usage

Use either of the following options to define a centrifugal load:

DLOAD
element number or element set (or blank), CENTRIF,  $ω^{2}$ , coord1, coord2, coord3, comp1,
comp2, comp3
DLOAD
element number or element set (or  blank), CENT,  $ρ ω^{2}$ , coord1, coord2, coord3, comp1,
comp2, comp3

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Rotational body force for the Types for Selected Step: Load effect: Centrifugal

Coriolis Forces

Coriolis force is defined by specifying the Coriolis distributed load type and giving the load magnitude as $ρ ω$ , where $ρ$ is the material density (mass per unit volume) for solid and shell elements or the mass per unit length for beam elements and $ω$ is the angular velocity in radians per time. The magnitude of the Coriolis load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. However, the position and orientation of the axis around which the structure rotates, which is defined by giving a point on the axis and the axis direction, are always applied at the beginning of the step and remain fixed during the step.

In a static analysis Abaqus computes the translational velocity term in the Coriolis loading by dividing the incremental displacement by the current time increment.

The Coriolis load formulation does not account for large volume changes.

Input File Usage

Use the following option to define a Coriolis load:

DLOAD
element number or element set (or blank), CORIO,  $ρ ω$ , coord1, coord2, coord3,
comp1, comp2, comp3

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Coriolis force for the Types for Selected Step

Rotary Acceleration Loads

Rotary acceleration loads are defined by specifying the rotary acceleration distributed load type and giving the rotary acceleration magnitude, $α$ , in radians/time², which includes any precessional motion effects. The axis of rotary acceleration must be defined by giving a point on the axis and the axis direction. Abaqus/Standard uses the specified material density (see Density), together with the rotary acceleration magnitude and axis of rotary acceleration, to calculate the loading. The magnitude of the load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. However, the position and orientation of the axis around which the structure rotates are always applied at the beginning of the step and remain fixed during the step.

Rotary acceleration loads are not applicable to axisymmetric elements.

Input File Usage

Use the following option to define a rotary acceleration load:

DLOAD
element number or element set (or blank), ROTA,  $α$ , coord1, coord2, coord3,
comp1, comp2, comp3

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Rotational body force for the Types for Selected Step: Load effect: Rotary acceleration

Specifying General Rigid-Body Acceleration Loading in Abaqus/Standard

General rigid-body acceleration loading can be specified in Abaqus/Standard by using a combination of the gravity, centrifugal ( $ω^{2}$ ), and rotary acceleration load types.

Rotordynamic Loads in a Fixed Reference Frame

Rotordynamic loads can be used to study the vibrational response of three-dimensional models of axisymmetric structures, such as a flywheel in a hybrid energy storage system, that are spinning about their axes of symmetry in a fixed reference frame (see Genta, 2005). This is in contrast to the centrifugal loads, Coriolis forces, and rotary acceleration loads discussed above, which are formulated in a rotating frame. Rotordynamic loads are, therefore, not intended to be used in conjunction with these other dynamic load types.

The intended workflow for rotordynamic loads is to define the load in a nonlinear static step to establish the centrifugal load effects and load stiffness terms associated with a spinning body. The nonlinear static step can then be followed by a sequence of linear dynamic analyses such as complex eigenvalue extraction and/or a subspace or direct-solution steady-state dynamic analysis to study complex dynamic behaviors (induced by gyroscopic moments) such as critical speeds, unbalanced responses, and whirling phenomena in rotating structures. You do not need to redefine the rotordynamic load in the linear dynamic analyses—the load definition is carried over from the nonlinear static step. The contribution of the gyroscopic matrices in the linear dynamic steps is unsymmetric; therefore, you must use unsymmetric matrix storage as described in Defining an Analysis during these steps.

Rotordynamic loads are intended only for three-dimensional models of axisymmetric bodies; you must ensure that this modeling assumption is met. Rotordynamic loads are supported for all three-dimensional continuum and cylindrical elements, shell elements, membrane elements, cylindrical membrane elements, beam elements, and rotary inertia elements. The spinning axis defined as part of the load must be the axis of symmetry for the structure. Therefore, beam elements must be aligned with the symmetry axis. In addition, one of the principal directions of each loaded rotary inertia element must be aligned with the symmetry axis, and the inertia components of the rotary inertia elements must be symmetric about this axis. Multiple spinning structures spinning about different axes can be modeled in the same step. The spinning structures can also be connected to nonaxisymmetric, nonrotating structures (such as bearings or support structures).

Rotordynamic loads are defined by specifying the angular velocity, $ω$ , in radians per time. The magnitude of the rotordynamic load can vary with time during a step according to an amplitude definition, as described in About Prescribed Conditions. However, the position and orientation of the axis around which the structure rotates, which is defined by giving a point on the axis and the axis direction, are always applied at the beginning of the step and remain fixed during the step.

Input File Usage

Use the following option to define a rotordynamic load:

DLOAD
element number or element set (or blank), ROTDYNF,  $ω$ , coord1, coord2, coord3,
comp1, comp2, comp3

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Rotational body force for the Types for Selected Step: Load effect: Rotordynamic load

Surface Tractions and Pressure Loads

General or shear surface tractions and pressure loads can be applied in Abaqus as element-based or surface-based distributed loads. The units of these loads are force per unit area.

The distributed surface load types that are available in Abaqus, along with the corresponding load type labels, are listed in Table 5 and Table 6. About the Element Library lists the distributed surface load types that are available for particular elements and the Abaqus/CAE load support for each load type. For some element-based loads you must identify the face of the element upon which the load is prescribed in the load type label (for example, Pn or PnNU for continuum elements).

Table 5. Distributed surface load types.
Load description	Load type label for element-based loads	Load type label for surface-based loads
General surface traction	TRVECn, TRVEC	TRVEC
Shear surface traction	TRSHRn, TRSHR	TRSHR
Nonuniform general surface traction	TRVECnNU, TRVECNU	TRVECNU
Nonuniform shear surface traction	TRSHRnNU, TRSHRNU	TRSHRNU
Pressure	Pn, P	P
Nonuniform pressure	PnNU, PNU	PNU
Fluid pressure penetration	Not applicable	PPEN
Hydrostatic pressure (available only in Abaqus/Standard)	HPn, HP	HP
Viscous pressure (available only in Abaqus/Explicit)	VPn, VP	VP
Stagnation pressure (available only in Abaqus/Explicit)	SPn, SP	SP
Pore mechanical pressure (available only in Abaqus/Standard)	PORMECHn, PORMECH	PORMECH
Hydrostatic internal and external pressure (only for PIPE and ELBOW elements)	HPI, HPE	Not applicable
Uniform internal and external pressure (only for PIPE and ELBOW elements)	PI, PE	Not applicable
Nonuniform internal and external pressure (only for PIPE and ELBOW elements)	PINU, PENU	Not applicable
Nodal pressure (available only in Abaqus/Standard)	Not applicable	NP

Table 6. Distributed surface load types in Abaqus/CAE.
Load description	Abaqus/CAE load type
General surface traction	Surface traction
Shear surface traction	Surface traction
Nonuniform general surface traction	Surface traction (surface-based loads only)
Nonuniform shear surface traction	Surface traction (surface-based loads only)
Pressure	Pressure
Nonuniform pressure	Pressure (surface-based loads only)
Hydrostatic pressure (available only in Abaqus/Standard)
Viscous pressure (available only in Abaqus/Explicit)
Stagnation pressure (available only in Abaqus/Explicit)
Hydrostatic internal and external pressure (only for PIPE and ELBOW elements)	Pipe pressure
Uniform internal and external pressure (only for PIPE and ELBOW elements)
Nonuniform internal and external pressure (only for PIPE and ELBOW elements)

Follower Surface Loads

By definition, the line of action of a follower surface load rotates with the surface in a geometrically nonlinear analysis. This is in contrast to a nonfollower load, which always acts in a fixed global direction.

With the exception of general surface tractions, all the distributed surface loads listed in Table 5 and Table 6 are modeled as follower loads. The hydrostatic and viscous pressures listed in Table 5 and Table 6 always act normal to the surface in the current configuration, the shear tractions always act tangent to the surface in the current configuration, and the internal and external pipe pressures follow the motion of the pipe elements.

General surface tractions can be specified to be follower or nonfollower loads. There is no difference between a follower and a nonfollower load in a geometrically linear analysis since the configuration of the body remains fixed. The difference between a follower and nonfollower general surface traction is illustrated in the next section through an example.

Input File Usage

Use one of the following options to define general surface tractions as follower loads (the default):

DLOAD, FOLLOWER=YES
DSLOAD, FOLLOWER=YES

Use one of the following options to define general surface tractions as nonfollower loads:

DLOAD, FOLLOWER=NO
DSLOAD, FOLLOWER=NO

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction: General, toggle on or off Follow rotation

Specifying General Surface Tractions

General surface tractions allow you to specify a surface traction, $t$ , acting on a surface S. The resultant load, $f$ , is computed by integrating $t$ over S:

f = \int_{S} t d S = \int_{S} α \hat{t} d S,

where $α$ is the magnitude and $\hat{t}$ is the direction of the load. To define a general surface traction, you must specify both a load magnitude, $α$ , and the direction of the load with respect to the reference configuration, $t_{u s e r}$ . The magnitude and direction can also be specified in user subroutine UTRACLOAD. The specified traction directions are normalized by Abaqus and, thus, do not contribute to the magnitude of the load:

{\hat{t}}^{o} = \frac{t_{u s e r}}{∥ t_{u s e r} ∥} .

Input File Usage

Use one of the following options to define a general surface traction:

DLOAD
element number or element set, load type label, magnitude,
direction components

where load type label is TRVECn, TRVEC, TRVECnNU, or TRVECNU.

DSLOAD
surface name, TRVEC or TRVECNU, magnitude, direction components

Abaqus/CAE Usage

Use the following input to define an element-based general surface traction:

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction: General, Distribution: select an analytical field

Use the following input to define a surface-based general surface traction:

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction: General, Distribution: Uniform or User-defined

Nonuniform element-based general surface traction is not supported in Abaqus/CAE.

Defining the Direction Vector with Respect to a Local Coordinate System

By default, the components of the traction vector are specified with respect to the global directions. You can also refer to a local coordinate system (see Orientations) for the direction components of these tractions. See Examples: Using a Local Coordinate System to Define Shear Directions below for an example of a traction load defined with respect to a local coordinate system. When using local coordinate systems for tractions applied to two-dimensional solid elements, you must ensure that the nonzero components of the loads are applied only in the X- and Y-directions. Traction loads in the third direction are not supported (Z-direction for plane strain and plane stress elements, $θ$ -direction for axisymmetric elements).

Input File Usage

Use one of the following options to specify a local coordinate system:

DLOAD, ORIENTATION=name
DSLOAD, ORIENTATION=name

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: select CSYS: Picked and click Edit to pick a local coordinate system, or select CSYS: User-defined to enter the name of a user subroutine that defines a local coordinate system

Rotation of the Traction Vector Direction

The traction load acts in the fixed direction $\hat{t} = {\hat{t}}^{o}$ in a geometrically linear analysis or if a nonfollower load is specified in a geometrically nonlinear analysis (which includes a perturbation step about a geometrically nonlinear base state).

If a follower load is specified in a geometrically nonlinear analysis, the traction load rotates rigidly with the surface using the following algorithm. The reference configuration traction vector, $t^{o} = α {\hat{t}}^{o}$ , is decomposed by Abaqus into two components: a normal component,

α {\hat{t}}^{o} \cdot N N = α_{n} N,

and a tangential component,

α ({\hat{t}}^{o} - {\hat{t}}^{o} \cdot N N) = α_{d} D,

where $N$ is the unit reference surface normal and $D$ is the unit projection of ${\hat{t}}^{o}$ onto the reference surface. The applied traction in the current configuration is then computed as

t = α_{n} n + α_{d} d,

where $n$ is the normal to the surface in the current configuration and $d$ is the image of $D$ rotated onto the current surface; that is, $d = RD$ , where $R$ is the standard rotation tensor obtained from the polar decomposition of the local two-dimensional surface deformation gradient $F = RU$ .

Examples: Follower and Nonfollower Tractions

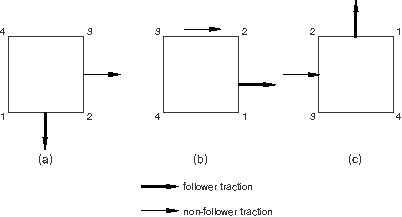

The following two examples illustrate the difference between applying follower and nonfollower tractions in a geometrically nonlinear analysis. Both examples refer to a single 4-node plane strain element (element 1). In Step 1 of the first example a follower traction load is applied to face 1 of element 1, and a nonfollower traction load is applied to face 2 of element 1. The element is rotated rigidly 90° counterclockwise in Step 1 and then another 90° in Step 2. As illustrated in Figure 1, the follower traction rotates with face 1, while the nonfollower traction on face 2 always acts in the global x-direction.

STEP, NLGEOM
 Step 1 - Rotate square 90 degrees
...
DLOAD, FOLLOWER=YES
 1, TRVEC1, 1., 0., -1., 0.
DLOAD, FOLLOWER=NO
 1, TRVEC2, 1., 1., 0., 0.
END STEP
STEP, NLGEOM
 Step 2 - Rotate square another 90 degrees
...
END STEP

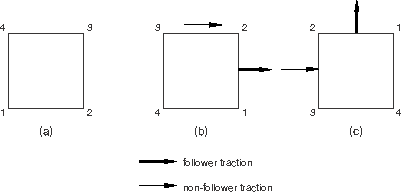

In the second example the element is rotated 90° counterclockwise with no load applied in Step 1. In Step 2 a follower traction load is applied to face 1, and a nonfollower traction load is applied to face 2. The element is then rotated rigidly by another 90°. The direction of the follower load is specified with respect to the original configuration. As illustrated in Figure 2, the follower traction rotates with face 1, while the nonfollower traction on face 2 always acts in the global x-direction.

STEP, NLGEOM
 Step 1 - Rotate square 90 degrees
...
END STEP
STEP, NLGEOM
 Step 2 - Rotate square another 90 degrees
DLOAD, FOLLOWER=YES
 1, TRVEC1, 1., 0., -1., 0.
DLOAD, FOLLOWER=NO
 1, TRVEC2, 1., 1., 0., 0.
...
END STEP

Specifying Shear Surface Tractions

Shear surface tractions allow you to specify a surface force per unit area, $t_{s}$ , that acts tangent to a surface S. The resultant load, $f$ , is computed by integrating $t_{s}$ over S:

f = \int_{S} t_{s} d S = \int_{S} α d d S,

where $α$ is the magnitude and $d$ is a unit vector along the direction of the load. To define a shear surface traction, you must provide both the magnitude, $α$ , and a direction, $t_{u s e r}$ , for the load. The magnitude and direction vector can also be specified in user subroutine UTRACLOAD.

Abaqus modifies the traction direction by first projecting the user-specified vector, $t_{u s e r}$ , onto the surface in the reference configuration,

t_{u s e r}^{p o} = t_{u s e r} - t_{u s e r} \cdot NN,

where $N$ is the reference surface normal. The specified traction is applied along the computed traction direction $D$ tangential to the surface:

D = \frac{t_{u s e r}^{p o}}{∥ t_{u s e r}^{p o} ∥} .

Consequently, a shear traction load is not applied at any point where $t_{u s e r}$ is normal to the reference surface.

The shear traction load acts in the fixed direction $d = D$ in a geometrically linear analysis. In a geometrically nonlinear analysis (which includes a perturbation step about a geometrically nonlinear base state), the shear traction vector will rotate rigidly; that is, $d = RD$ , where $R$ is the standard rotation tensor obtained from the polar decomposition of the local two-dimensional surface deformation gradient $F = RU$ .

Input File Usage

Use one of the following options to define a shear surface traction:

DLOAD
element number or element set, load type label, magnitude,
direction components

where load type label is TRSHRn, TRSHR, TRSHRnNU, or TRSHRNU.

DSLOAD
surface name, TRSHR or TRSHRNU, magnitude, direction components

Abaqus/CAE Usage

Use the following input to define an element-based shear surface traction:

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction: Shear, Distribution: select an analytical field

Use the following input to define a surface-based general surface traction:

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction: Shear, Distribution: Uniform or User-defined

Nonuniform element-based shear surface traction is not supported in Abaqus/CAE.

Defining the Direction Vector with Respect to a Local Coordinate System

By default, the components of the shear traction vector are specified with respect to the global directions. You can also refer to a local coordinate system (see Orientations) for the direction components of these tractions.

Input File Usage

Use one of the following options to specify a local coordinate system:

DLOAD, ORIENTATION=name
DSLOAD, ORIENTATION=name

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: select CSYS: Picked and click Edit to pick a local coordinate system, or select CSYS: User-defined to enter the name of a user subroutine that defines a local coordinate system

Examples: Using a Local Coordinate System to Define Shear Directions

It is sometimes convenient to give shear and general traction directions with respect to a local coordinate system. The following two examples illustrate the specification of the direction of a shear traction on a cylinder using global coordinates in one case and a local cylindrical coordinate system in the other case. The axis of symmetry of the cylinder coincides with the global z-axis. A surface named SURFA has been defined on the outside of the cylinder.

In the first example the direction of the shear traction, $t_{u s e r} = (0., 1., 0.)$ , is given in global coordinates. The sense of the resulting shear tractions using global coordinates is shown in Figure 3(a).

STEP
 Step 1 - Specify shear directions in global coordinates
...
DSLOAD
 SURFA, TRSHR, 1., 0., 1., 0.
...
END STEP

In the second example the direction of the shear traction, $t_{u s e r} = (0., 1., 0.)$ , is given with respect to a local cylindrical coordinate system whose axis coincides with the axis of the cylinder. The sense of the resulting shear tractions using the local cylindrical coordinate system is shown in Figure 3(b).

ORIENTATION, NAME=CYLIN, SYSTEM=CYLINDRICAL
 0., 0., 0., 0., 0., 1.
...
STEP
 Step 1 - Specify shear directions in local cylindrical coordinates
...
DSLOAD, ORIENTATION=CYLIN
 SURFA, TRSHR, 1., 0., 1., 0.
...
END STEP

Resultant Loads due to Surface Tractions

You can choose to integrate surface tractions over the current or the reference configuration by specifying whether or not a constant resultant should be maintained.

In general, the constant resultant method is best suited for cases where the magnitude of the resultant load should not vary with changes in the surface area. However, it is up to you to decide which approach is best for your analysis. An example of an analysis using a constant resultant can be found in Distributed traction and edge loads.

Choosing Not to Have a Constant Resultant

If you choose not to have a constant resultant, the traction vector is integrated over the surface in the current configuration, a surface that in general deforms in a geometrically nonlinear analysis. By default, all surface tractions are integrated over the surface in the current configuration.

Input File Usage

Use one of the following options:

DLOAD, CONSTANT RESULTANT=NO
DSLOAD, CONSTANT RESULTANT=NO

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction is defined per unit deformed area

Maintaining a Constant Resultant

If you choose to have a constant resultant, the traction vector is integrated over the surface in the reference configuration and then held constant.

Input File Usage

Use one of the following options:

DLOAD, CONSTANT RESULTANT=YES
DSLOAD, CONSTANT RESULTANT=YES

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Surface traction for the Types for Selected Step: Traction is defined per unit undeformed area

Example

The constant resultant method has certain advantages when a traction is used to model a distributed load with a known constant resultant. Consider the case of modeling a uniform dead load, magnitude p, acting on a flat plate whose normal is in the $e_{2}$ -direction in a geometrically nonlinear analysis (Figure 4).

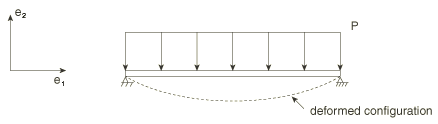

Such a model might be used to simulate a snow load on a flat roof. The snow load could be modeled as a distributed dead traction load $t = - p e_{2}$ . Let $S_{o}$ and S denote the total surface area of the plate in the reference and current configurations, respectively. With no constant resultant, the total integrated load on the plate, $f$ , is

f = \int_{S} t d S = \int_{S} - p e_{2} d S = - p e_{2} S .

In this case a uniform traction leads to a resultant load that increases as the surface area of the plate increases, which is not consistent with a fixed snow load. With the constant resultant method, the total integrated load on the plate is

f = \int_{S_{o}} t d S_{o} = \int_{S_{o}} - p e_{2} d S_{o} = - p e_{2} S_{o} .

In this case a uniform traction leads to a resultant that is equal to the pressure times the surface area in the reference configuration, which is more consistent with the problem at hand.

Specifying Pressure Loads

Distributed pressure loads can be specified on any two-dimensional, three-dimensional, or axisymmetric elements. Fluid pressure penetration loads can be specified on any two-dimensional, three-dimensional, or axisymmetric elements. Hydrostatic pressure loads can be specified in Abaqus/Standard on two-dimensional, three-dimensional, and axisymmetric elements. Viscous and stagnation pressure loads can be specified in Abaqus/Explicit on any elements.

Distributed Pressure Loads

Distributed pressure loads can be specified on any elements. For beam elements, a positive applied pressure results in a force vector acting along the particular local direction of the section or a global direction, whichever is specified. For conventional shell elements, the force vector points along the element SPOS normal. For continuum solid or a continuum shell elements with the distributed load on an explicitly identified facet, the force vector acts against the outward normal of that facet. Distributed pressure loads are not supported for pipe and elbow elements.

Distributed pressure loads can be specified on a surface formed over elements; a positive applied pressure results in a force vector acting against the local surface normal.

Input File Usage

Use one of the following options to define a pressure load:

DLOAD
element number or element set, load type label, magnitude

where load type label is Pn, P, PnNU, or PNU.

DSLOAD
surface name, P or PNU, magnitude

Abaqus/CAE Usage

Use the following input to define an element-based pressure load:

Load module: Create Load: choose Mechanical for the Category and Pressure for the Types for Selected Step: Distribution: select an analytical field or a discrete field

Use the following input to define a surface-based pressure load:

Load module: Create Load: choose Mechanical for the Category and Pressure for the Types for Selected Step: Uniform or User-defined

Nonuniform element-based pressure loads are not supported in Abaqus/CAE.

Fluid Pressure Penetration Loads

You can simulate fluid pressure penetration loads as distributed surface loads or pairwise surface loads. For more information, see Fluid Pressure Penetration Loads.

Hydrostatic Pressure Loads on Two-Dimensional, Three-Dimensional, and Axisymmetric Elements in Abaqus/Standard

To define hydrostatic pressure in Abaqus/Standard, give the Z-coordinates of the zero pressure level (point a in Figure 5) and the level at which the hydrostatic pressure is defined (point b in Figure 5) in an element-based or surface-based distributed load definition. For levels above the zero pressure level, the hydrostatic pressure is zero.

In planar elements the hydrostatic head is in the Y-direction; for axisymmetric elements the Z-direction is the second coordinate.

Input File Usage

Use one of the following options to define a hydrostatic pressure load:

DLOAD
element number or element set, HPn or HP, magnitude, Z-coordinate of point a,
Z-coordinate of point b

DSLOAD
surface name, HP, magnitude, Z-coordinate of point a,
Z-coordinate of point b

Abaqus/CAE Usage

Use the following input to define a surface-based hydrostatic pressure load:

Load module: Create Load: choose Mechanical for the Category and Pressure for the Types for Selected Step: Distribution: Hydrostatic

Element-based hydrostatic pressure loads are not supported in Abaqus/CAE.

Mechanical Pore Pressure Loads on Two-Dimensional, Three-Dimensional, and Axisymmetric Coupled Pore Pressure Elements in Abaqus/Standard

In a coupled pore fluid diffusion and stress analysis (see Coupled Pore Fluid Diffusion and Stress Analysis) the pore pressure degrees of freedom, $P_{p o r e}$ , can be applied automatically as mechanical surface pressures for two-dimensional, three-dimensional, and axisymmetric coupled pore pressure elements. Abaqus/Standard applies a mechanical pressure, $P_{m e c h} = P_{p o r e}$ , onto the surfaces you prescribe. Since the mechanical pressure loads are determined by the solution pore pressures, Abaqus/Standard ignores any amplitude definition on the distributed load definition. You can include a nonzero scaling factor, $α$ , which will be applied to the pore pressures to give $P_{m e c h} = α P_{p o r e}$ . By default, the scaling factor is set to unity. This loading is supported only for continuum elements that have pore pressure degrees of freedom during a geostatic (Geostatic Stress State) or coupled pore fluid diffusion and stress analysis (Coupled Pore Fluid Diffusion and Stress Analysis).

Input File Usage

Use one of the following options to define a mechanical pore pressure load:

DLOAD
 element number or element set, PORMECHn, scaling factor

DSLOAD
surface name, PORMECH, scaling factor

Abaqus/CAE Usage

Mechanical pore pressure loads are not supported in Abaqus/CAE.

Nodal Pressure Loads on Surface Elements for a Multiple Load Case Analysis Involving Substructures

This functionality is limited to distributed loading on surface elements (see Surface Elements) in the context of a multiple load case analysis (see Multiple Load Case Analysis) involving substructures (see Generating Substructures) in Abaqus/Standard. Nodal values of distributed pressure load magnitude are provided via substructure load vectors and can be scaled by a scaling factor associated with this distributed load option. The resulting effect is a continuous pressure field interpolated from nodal values. Abaqus/Standard integrates this pressure field to compute magnitudes of external forces acting at surface nodes in the normal direction.

The surface specified for this type of distributed loading must be based on surface elements and should be connected to the original surface of the structure with surface-based tie constraints (see Mesh Tie Constraints). These two surfaces should act as secondary and main surfaces, respectively, in the surface-based tie constraints. These constraints transform the distribution of forces acting on nodes of the surface-element-based surface to a distribution of forces acting on nodes of the original structure.

Input File Usage

Use the following option to define a nodal pressure load:

DSLOAD
surface name, NP, scaling factor

Abaqus/CAE Usage

Nodal pressure loads are not supported in Abaqus/CAE.

Viscous Pressure Loads in Abaqus/Explicit

Viscous pressure loads are defined by

p = - c_{v} (v - v_{r e f}) \cdot n,

where p is the pressure applied to the body;

c_{v}

is the coefficient of viscosity, given as the magnitude of the load;

v

is the velocity of the point on the surface where the pressure is being applied;

v_{r e f}

is the velocity of the reference node; and

n

is the unit outward normal to the element at the same point.

Viscous pressure loading is most commonly applied in structural problems when you want to damp out dynamic effects and, thus, reach static equilibrium in a minimal number of increments. A common example is the determination of springback in a sheet metal product after forming, in which case a viscous pressure would be applied to the faces of shell elements defining the sheet metal. An appropriate choice for the value of $c_{v}$ is important for using this technique effectively.

To compute $c_{v}$ , consider the infinite continuum elements described in Infinite Elements. In explicit dynamics those elements achieve an infinite boundary condition by applying a viscous normal pressure where the coefficient $c_{v}$ is given by $ρ c_{d}$ ; $ρ$ is the density of the material at the surface, and $c_{d}$ is the value of the dilatational wave speed in the material (the infinite continuum elements also apply a viscous shear traction). For an isotropic, linear elastic material

c_{d} = \sqrt{\frac{λ + 2 μ}{ρ}} = \sqrt{\frac{E (1 - ν)}{ρ (1 + ν) (1 - 2 ν)}},

where

λ

and

μ

are Lamé's constants, E is Young's modulus, and

ν

is Poisson's ratio. This choice of the viscous pressure coefficient represents a level of damping in which pressure waves crossing the free surface are absorbed with no reflection of energy back into the interior of the finite element mesh.

For typical structural problems it is not desirable to absorb all the energy (as is the case in the infinite elements). Typically $c_{v}$ is set equal to a small percentage (perhaps 1 or 2 percent) of $ρ c_{d}$ as an effective way of minimizing ongoing dynamic effects. The $c_{v}$ coefficient should have a positive value.

Input File Usage

Use one of the following options to define a viscous pressure load:

DLOAD, REF NODE=reference_node
element number or element set, VPn or VP, magnitude
DSLOAD, REF NODE=reference_node
surface name, VP, magnitude

Abaqus/CAE Usage

Use the following input to define a surface-based viscous pressure load:

Load module: Create Load: choose Mechanical for the Category and Pressure for the Types for Selected Step: Distribution: Viscous, toggle on or off Determine velocity from reference point

Element-based viscous pressure loads are not supported in Abaqus/CAE.

Stagnation Pressure Loads in Abaqus/Explicit

Stagnation pressure loads are defined by

p_{s} = - c_{s} {(v \cdot n - v_{r e f} \cdot n)}^{2},

where

p_{s}

is the stagnation pressure applied to the body;

c_{s}

is the factor, given as the magnitude of the load;

v

is the velocity of the point on the surface where the pressure is being applied;

n

is the unit outward normal to the element at the same point; and

v_{r e f}

is the velocity of the reference node. The coefficient

c_{s}

should be very small to avoid excessive damping and a dramatic drop in the stable time increment.

Input File Usage

Use one of the following options to define a stagnation pressure load:

DLOAD, REF NODE=reference_node
element number or element set, SPn or SP, magnitude
DSLOAD, REF NODE=reference_node
element number or element set, SP, magnitude

Abaqus/CAE Usage

Use the following input to define a surface-based stagnation pressure load:

Load module: Create Load: choose Mechanical for the Category and Pressure for the Types for Selected Step: Distribution: Stagnation, toggle on or off Determine velocity from reference point

Element-based stagnation pressure loads are not supported in Abaqus/CAE.

Pressure on Pipe and Elbow Elements

You can specify external pressure, internal pressure, external hydrostatic pressure, or internal hydrostatic pressure on pipe or elbow elements. When pressure loads are applied, the effective outer or inner diameter must be specified in the element-based distributed load definition.

The loads resulting from the pressure on the ends of the element are included: Abaqus assumes a closed-end condition. Closed-end conditions correctly model the loading at pipe intersections, tight bends, corners, and cross-section changes; in straight sections and smooth bends the end loads of adjacent elements cancel each other precisely. If an open-end condition is to be modeled, a compensating point load should be added at the open end. A case where such an end load must be applied occurs if a pressurized pipe is modeled with a mixture of pipe and beam elements. In that case closed-end conditions generate a physically nonexisting force at the transition between pipe and beam elements. Such mixed modeling of a pipe is not recommended.

For pipe elements subjected to pressure loading, the effective axial force due to the pressure loads can be obtained by requesting output variable ESF1 (see Beam Element Library).

Input File Usage

Use the following option to define an external pressure load on pipe or elbow elements:

DLOAD
element number or element set, PE or PENU, magnitude, effective outer diameter

Use the following option to define an internal pressure load on pipe or elbow elements:

DLOAD
element number or element set, PI or PINU, magnitude, effective inner diameter

Use the following option to define an external hydrostatic pressure load on pipe or elbow elements:

DLOAD
element number or element set, HPE, magnitude, effective outer diameter

Use the following option to define an internal hydrostatic pressure load on pipe or elbow elements:

DLOAD
element number or element set, HPI, magnitude, effective inner diameter

Abaqus/CAE Usage

Use the following input to define an external or internal pressure load on pipe or elbow elements:

Load module: Create Load: choose Mechanical for the Category and Pipe pressure for the Types for Selected Step: Side: External or Internal, Distribution: Uniform, User-defined, or select an analytical field

Use the following input to define an external or internal hydrostatic pressure load on pipe or elbow elements:

Load module: Create Load: choose Mechanical for the Category and Pipe pressure for the Types for Selected Step: Side: External or Internal, Distribution: Hydrostatic

Defining Distributed Surface Loads on Plane Stress Elements

Plane stress theory assumes that the volume of a plane stress element remains constant in a large-strain analysis. When a distributed surface load is applied to an edge of plane stress elements, the current length and orientation of the edge are considered in the load distribution, but the current thickness is not; the original thickness is used.

This limitation can be circumvented only by using three-dimensional elements at the edge so that a change in thickness upon loading is recognized; suitable equation constraints (Linear Constraint Equations) would be required to make the in-plane displacements on the two faces of these elements equal. Three-dimensional elements along an edge can be connected to interior shell elements by using a shell-to-solid coupling constraint (see Shell-to-Solid Coupling for details).

Edge Tractions and Moments on Shell Elements and Line Loads on Beam Elements

Distributed edge tractions (general, shear, normal, or transverse) and edge moments can be applied to shell elements in Abaqus as element-based or surface-based distributed loads. The units of an edge traction are force per unit length. The units of an edge moment are torque per unit length. References to local coordinate systems are ignored for all edge tractions and moments except general edge tractions.

Distributed line loads can be applied to beam elements in Abaqus as element-based distributed loads. The units of a line load are force per unit length.

The distributed edge and line load types that are available in Abaqus, along with the corresponding load type labels, are listed in Table 7 and Table 8. About the Element Library lists the distributed edge and line load types that are available for particular elements and the Abaqus/CAE load support for each load type. For element-based loads applied to shell elements, you must identify the edge of the element upon which the load is prescribed in the load type label (for example, EDLDn or EDLDnNU).

Follower Edge and Line Loads

By definition, the line of action of a follower edge or line load rotates with the edge or line in a geometrically nonlinear analysis. This is in contrast to a nonfollower load, which always acts in a fixed global direction.

With the exception of general edge tractions on shell elements and the forces per unit length in the global directions on beam elements, all the edge and line loads listed in Table 7 and Table 8 are modeled as follower loads. The normal, shear, and transverse edge loads listed in Table 7 and Table 8 act in the normal, shear, and transverse directions, respectively, in the current configuration (see Figure 6). The edge moment always acts about the shell edge in the current configuration. The forces per unit length in the local beam directions rotate with the beam elements.

Table 7. Distributed edge load types.
Load description	Load type label for element-based loads	Load type label for surface-based loads
General edge traction	EDLDn	EDLD
Normal edge traction	EDNORn	EDNOR
Shear edge traction	EDSHRn	EDSHR
Transverse edge traction	EDTRAn	EDTRA
Edge moment	EDMOMn	EDMOM
Nonuniform general edge traction	EDLDnNU	EDLDNU
Nonuniform normal edge traction	EDNORnNU	EDNORNU
Nonuniform shear edge traction	EDSHRnNU	EDSHRNU
Nonuniform transverse edge traction	EDTRAnNU	EDTRANU
Nonuniform edge moment	EDMOMnNU	EDMOMNU
Force per unit length in global X-, Y-, and Z-directions (only for beam elements)	PX, PY, PZ	Not applicable
Nonuniform force per unit length in global X-, Y-, and Z-directions (only for beam elements)	PXNU, PYNU, PZNU	Not applicable
Force per unit length in beam local 1- and 2-directions (only for beam elements)	P1, P2	Not applicable
Nonuniform force per unit length in beam local 1- and 2-directions (only for beam elements)	P1NU, P2NU	Not applicable

Table 8. Distributed edge load types in Abaqus/CAE.
Load description	Abaqus/CAE load type
General edge traction	Shell edge load
Normal edge traction
Shear edge traction
Transverse edge traction
Edge moment
Nonuniform general edge traction	Shell edge load (surface-based loads only)
Nonuniform normal edge traction
Nonuniform shear edge traction
Nonuniform transverse edge traction
Nonuniform edge moment
Force per unit length in global X-, Y-, and Z-directions (only for beam elements)	Line load
Nonuniform force per unit length in global X-, Y-, and Z-directions (only for beam elements)
Force per unit length in beam local 1- and 2-directions (only for beam elements)
Nonuniform force per unit length in beam local 1- and 2-directions (only for beam elements)

The forces per unit length in the global directions on beam elements are always nonfollower loads.

General edge tractions can be specified to be follower or nonfollower loads. There is no difference between a follower and a nonfollower load in a geometrically linear analysis since the configuration of the body remains fixed.

Input File Usage

Use one of the following options to define general edge tractions as follower loads (the default):

DLOAD, FOLLOWER=YES
DSLOAD, FOLLOWER=YES

Use one of the following options to define general edge tractions as nonfollower loads:

DLOAD, FOLLOWER=NO
DSLOAD, FOLLOWER=NO

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction: General, toggle on or off Follow rotation

Specifying General Edge Tractions

General edge tractions allow you to specify an edge load, $t$ , acting on a shell edge, L. The resultant load, $f$ , is computed by integrating $t$ over L:

f = \int_{L} t d L .

To define a general edge traction, you must provide both a magnitude, $α$ , and direction, $t_{u s e r}$ , for the load. The specified load directions are normalized by Abaqus; thus, they do not contribute to the magnitude of the load.

If a nonuniform general edge traction is specified, the magnitude, $α$ , and direction, $t_{u s e r}$ , must be specified in user subroutine UTRACLOAD.

Input File Usage

Use one of the following options to define a general edge traction:

DLOAD
element number or element set, EDLDn or EDLDnNU, magnitude,
direction components
DSLOAD
surface name, EDLD or EDLDNU, magnitude, direction components

Abaqus/CAE Usage

Use the following input to define an element-based general edge traction:

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction: General, Distribution: select an analytical field

Use the following input to define a surface-based general edge traction:

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction: General, Distribution: Uniform or User-defined

Nonuniform element-based general edge traction is not supported in Abaqus/CAE.

Rotation of the Load Vector

In a geometrically linear analysis the edge load, $t$ , acts in the fixed direction defined by

t = α \frac{t_{u s e r}}{∥ t_{u s e r} ∥} .

If a nonfollower load is specified in a geometrically nonlinear analysis (which includes a perturbation step about a geometrically nonlinear base state), the edge load, $t$ , acts in the fixed direction defined by

t = α \frac{t_{u s e r}}{∥ t_{u s e r} ∥} .

If a follower load is specified in a geometrically nonlinear analysis (which includes a perturbation step about a geometrically nonlinear base state), the components must be defined with respect to the reference configuration. The reference edge traction is defined as

t^{o} = α \frac{t_{u s e r}}{∥ t_{u s e r} ∥} .

The applied edge traction, $t$ , is computed by rigidly rotating $t^{o}$ onto the current edge.

Defining the Direction Vector with Respect to a Local Coordinate System

By default, the components of the edge traction vector are specified with respect to the global directions. You can also refer to a local coordinate system (see Orientations) for the direction components of these tractions.

Input File Usage

Use one of the following options to specify a local coordinate system:

DLOAD, ORIENTATION=name
DSLOAD, ORIENTATION=name

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: select CSYS: Picked and click Edit to pick a local coordinate system, or select CSYS: User-defined to enter the name of a user subroutine that defines a local coordinate system

Specifying Shear, Normal, and Transverse Edge Tractions

The loading directions of shear, normal, and transverse edge tractions are determined by the underlying elements. A positive shear edge traction acts in the positive direction of the shell edge as determined by the element connectivity. A positive normal edge traction acts in the plane of the shell in the inward direction. A positive transverse edge traction acts in a sense opposite to the facet normal. The directions of positive shear, normal, and transverse edge tractions are shown in Figure 6.

To define a shear, normal, or transverse edge traction, you must provide a magnitude, $α$ for the load.

If a nonuniform shear, normal, or transverse edge traction is specified, the magnitude, $α$ , must be specified in user subroutine UTRACLOAD.

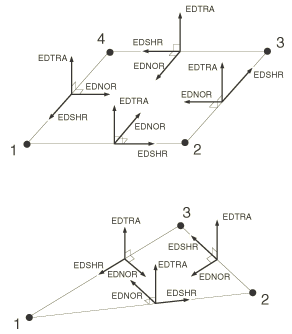

In a geometrically linear step, the shear, normal, and transverse edge tractions act in the tangential, normal, and transverse directions of the shell, as shown in Figure 6. In a geometrically nonlinear analysis the shear, normal, and transverse edge tractions rotate with the shell edge so they always act in the tangential, normal, and transverse directions of the shell, as shown in Figure 6.

Input File Usage

Use one of the following options to define a directed edge traction:

DLOAD
element number or element set, directed edge traction label, magnitude
DSLOAD
surface name, directed edge traction label, magnitude

For element-based loads the directed edge traction label can be EDSHRn or EDSHRnNU for shear edge tractions, EDNORn or EDNORnNU for normal edge tractions, or EDTRAn or EDTRAnNU for transverse edge tractions.

For surface-based loads the directed edge traction label can be EDSHR or EDSHRNU for shear edge tractions, EDNOR or EDNORNU for normal edge tractions, or EDTRA or EDTRANU for transverse edge tractions.

Abaqus/CAE Usage

Use the following input to define an element-based directed edge traction:

Load module: Create Load; choose Mechanical for the Category and Shell edge load for the Types for Selected Step; Traction: Normal, Transverse, or Shear; Distribution: select an analytical field

Use the following input to define a surface-based directed edge traction:

Load module: Create Load; choose Mechanical for the Category and Shell edge load for the Types for Selected Step; Traction: Normal, Transverse, or Shear; Distribution: Uniform or User-defined

Nonuniform element-based directed edge traction is not supported in Abaqus/CAE.

Specifying Edge Moments

An edge moment acts about the shell edge with the positive direction determined by the element connectivity. The directions of positive edge moments are shown in Figure 7.

To define a distributed edge moment, you must provide a magnitude, $α$ , for the load.

If a nonuniform edge moment is specified, the magnitude, $α$ , must be specified in user subroutine UTRACLOAD.

An edge moment always acts about the current shell edge in both geometrically linear and nonlinear analyses.

In a geometrically linear step an edge moment acts about the shell edge as shown in Figure 7. In a geometrically nonlinear analysis an edge moment always acts about the shell edge as shown in Figure 7.

Input File Usage

Use one of the following options to define an edge moment:

DLOAD
element number or element set, EDMOMn or EDMOMnNU, magnitude
DSLOAD
surface name, EDMOM or EDMOMNU, magnitude

Abaqus/CAE Usage

Use the following input to define an element-based edge moment:

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction: Moment, Distribution: select an analytical field

Use the following input to define a surface-based edge moment:

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction: General, Distribution: Uniform or User-defined

Nonuniform element-based edge moments are not supported in Abaqus/CAE.

Resultant Loads due to Edge Tractions and Moments

You can choose to integrate edge tractions and moments over the current or the reference configuration by specifying whether or not a constant resultant should be maintained. In general, the constant resultant method is best suited for cases where the magnitude of the resultant load should not vary with changes in the edge length. However, it is up to you to decide which approach is best for your analysis.

Choosing Not to Have a Constant Resultant

If you choose not to have a constant resultant, an edge traction or moment is integrated over the edge in the current configuration, an edge whose length changes during a geometrically nonlinear analysis.

Input File Usage

Use one of the following options:

DLOAD, CONSTANT RESULTANT=NO
DSLOAD, CONSTANT RESULTANT=NO

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction is defined per unit deformed area

Maintaining a Constant Resultant

If you choose to have a constant resultant, an edge traction or moment is integrated over the edge in the reference configuration, whose length is constant.

Input File Usage

Use one of the following options:

DLOAD, CONSTANT RESULTANT=YES
DSLOAD, CONSTANT RESULTANT=YES

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Shell edge load for the Types for Selected Step: Traction is defined per unit undeformed area

Specifying Line Loads on Beam Elements

You can specify line loads on beam elements in the global X-, Y-, or Z-direction. In addition, you can specify line loads on beam elements in the beam local 1- or 2-direction.

Input File Usage

Use the following option to define a force per unit length in the global X-, Y-, or Z-direction on beam elements:

DLOAD
element number or element set, load type label, magnitude

where load type label is PX, PY, PZ, PXNU, PYNU, or PZNU.

Use the following option to define a force per unit length in the beam local 1- or 2-direction:

DLOAD
element number or element set, load type label, magnitude

where load type label is P1, P2, P1NU, or P2NU.

Abaqus/CAE Usage

Load module: Create Load: choose Mechanical for the Category and Line load for the Types for Selected Step

References

Genta, G., Dynamics of Rotating Systems, Springer , 2005.
