Once the optimization task is completely defined, a check run should
be made. Tosca Structure
then performs a complete syntax check of the optimization task to ensure
a valid definition. Eventually some test runs for shape (see Check run (TEST_SHAPE)) and bead optimization
(see Testing the Optimization Setup (TEST_BEAD)) are made which will
apply hypothetical optimization displacements to the model to enable the
user to check restrictions etc. visually (for example, using Tosca Structure.view).

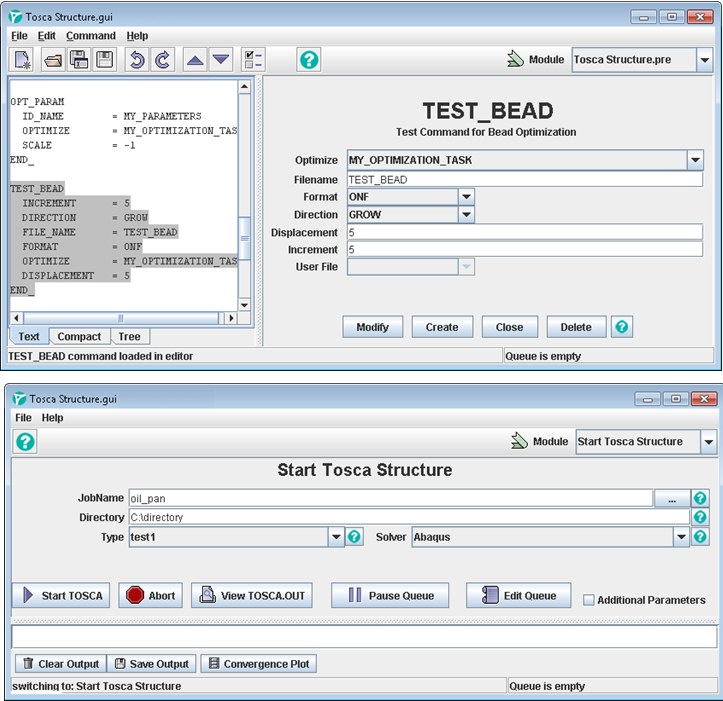

The entries for check run can be made in Tosca Structure.pre
which are executed at Start Tosca Structure
by selecting test1
as Type. Both is shown in the following figure:
