Cyclic-Plane Symmetry Combination (SURF_CYCLIC_PLANE_SYM)

This link condition is a combination of cyclic rotational and planar symmetry. First, the cyclic symmetry is enforced, and afterward the surface is modified to ensure plane symmetry in each segment.

See Also
In Other Guides
LINK_SHAPE

CLIENT / Applicable for SHAPE_CONTROLLER SHAPE_SENSITIVITY
SURF_CYCLIC_PLANE_SYM OK OK

This link condition is a combination of cyclic rotational and planar symmetry. First, the cyclic symmetry is enforced, and afterward the surface is modified to ensure plane symmetry in each segment. The plane for each segment cuts the segment into two halves. The following parameters are necessary for the definition of the link condition:


CLIENT           = SURF_CYCLIC_PLANE_SYM
CLIENT_DIR       = <X_1>, <X_2>, <X_3>
CS               = name_of_coord_system
TOL              = tolerance_value
ANGLE            = angle in degree
CYCLIC_SYM_START = <X_1>, <X_2>, <X_3>

In comparison to the SURF_CYCLIC_SYM case, the CYCLIC_SYM_START point is really important here. As it defines the starting point of the partitioning process, this point directly influences the areas that will be made plane symmetric. Its coordinates are given with reference to the global cartesian coordinate system.

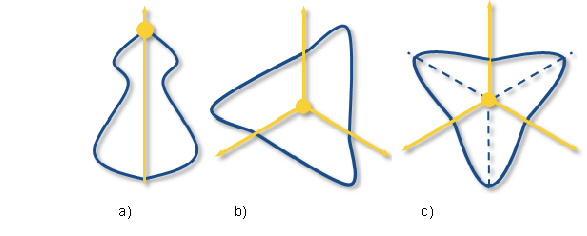

The figure above shows the differences between the different SURF_*_SYM restrictions. From left to right this is a) plane symmetry (SURF_PLANE_SYM), b) cyclic symmetry (SURF_CYCLIC_SYM) and c) the combination of plane and cyclic symmetry (SURF_CYCLIC_PLANE_SYM).

Important:

  • When using any symmetry constraint in combination with SHAPE_SENSITIVITY, only symmetry on the design area is enforced.
