About the Threehole Example | ||
| ||
About the Model

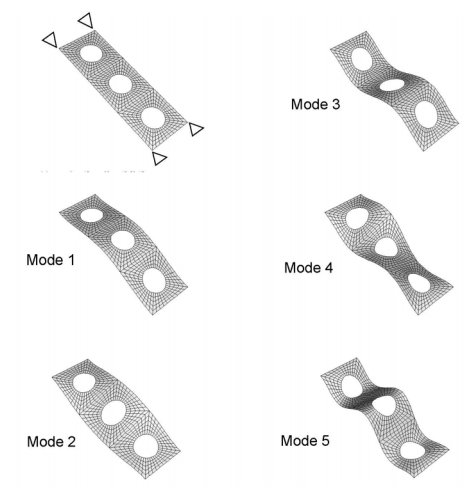

The following figure illustrates the initial model along with the first five eigenmodes.
The rim is modeled using 3D solid elements. Only the surface nodes of the rim holes are used as design nodes. Two load cases are considered. The loads are applied on the node in the middle of the mounting hole and transferred to the structure through RBE2 elements.
Procedure Summary
Note:
This optimization task is a standard shape optimization task as described in
the Holeplate example. The set-up including starting a
SHAPE_CONTROLLER task, loading the model and definition of design
area, design variable constraint and objective function can be done as
described in the Getting Started Manual.
| Model: | threehole.ext |
| Design Area: | Node group design_nodes |
| Design Variable Constraint: | Fixation of the displacement along the global x-axis for the node group nodes_fix_x |
| Mesh Smooth: | Mesh smoothing of all elements, while free surface nodes remain free |
| Objective: | Maximize the first eigenfrequency |
| Constraint: | Relative volume of 100 % (equality constraint) |
| Stop Condition | The global stop condition is set to 5 iterations |
