CFD Model Setup

This section introduces the flow splitter CFD model.

The simulation files are provided within the installation and can be found under this path:

  <install_dir>\SMATfoResources\<solver>\examples\flowsplitter\

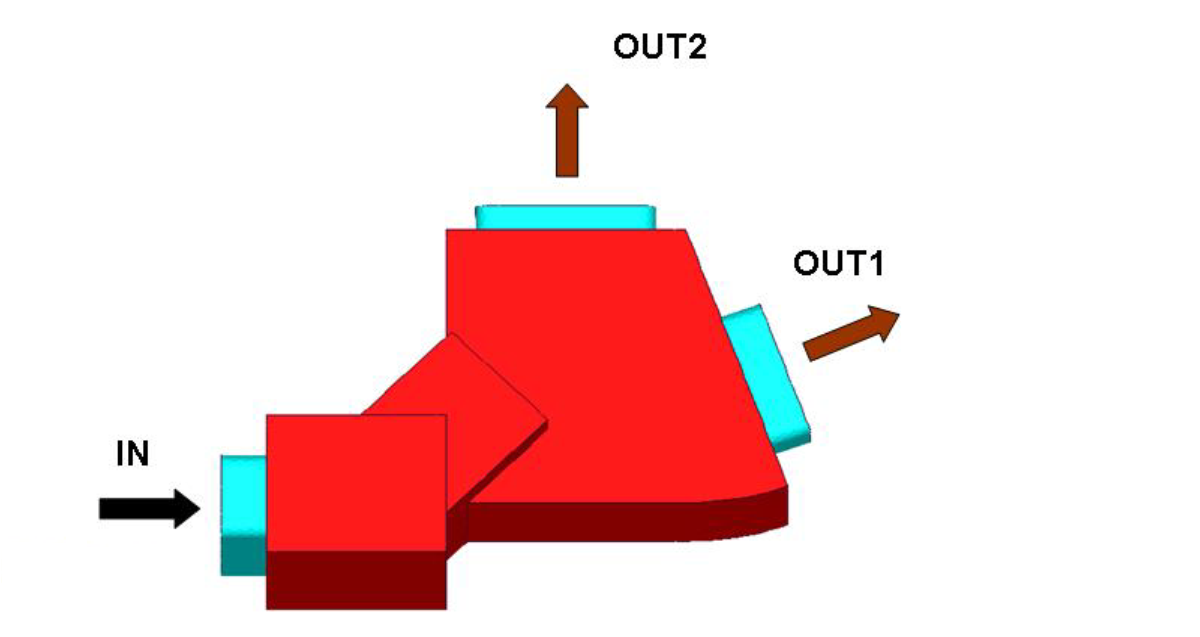

The CFD model features a typical problem of a flow splitter with one inflow and two outflows:

As an additional target for this case the optimization result should lead to a mass-flow ratio of 60:40 for the two outlets.

The boundary conditions for this case can be found in the following table:

IN

Velocity Inlet, v = 5m/s

OUT1

Outflow, Flow Rate Weighting 0.4

OUT2

Outflow, Flow Rate Weighting 0.6

Material

Air
