Test 10A: 2D plane stress – biaxial (negative) load, primary creep

This problem provides evidence that Abaqus can reproduce the result from the benchmark defined by NAFEMS and cited as the reference solution.

This page discusses:

Elements tested
Problem description
Reference solution
Results and discussion
Remarks
Input files

ProductsAbaqus/Standard

Elements tested

CPS8R

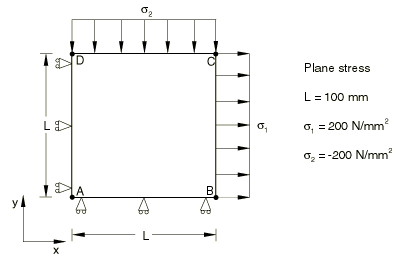

Problem description

Material:

Young's modulus = 200 × 10³ N/mm², Poisson's ratio = 0.3, Creep law: $ε$ = A $σ^{n} t$ , A = 3.125 × 10⁻¹⁴ per hour ( $σ$ in N/mm²), n = 5, m = 0.5.

Boundary conditions:

$u_{x} = 0$ on line AD and $u_{y} = 0$ on line AB.

Loading:

Prescribed tensile stress $σ_{1}$ = 200 N/mm² on line BC and $σ_{2}$ −200 N/mm² on line CD.

Reference solution

This is a test recommended by the National Agency for Finite Element Methods and Standards (U.K.): Test 10(a) from NAFEMS Publication Ref: R0027, “NAFEMS Fundamental Tests of Creep Behaviour,” June 1993.

$\begin{matrix} ε_{x x}^{c} & = - ε_{y y}^{c} = 0.135 \sqrt{t} \\ ε_{e f f}^{c} & = 0.1559 \sqrt{t} \\ ε_{y y}^{c} & = 0.0 \end{matrix}$

Results and discussion

The results are shown in the following table. The values enclosed in parentheses are percentage differences with respect to the reference solution.

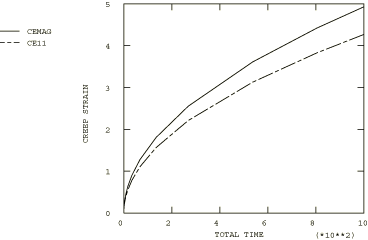

Abaqus Results
t	$ε_{x x}^{c}$	$ε_{e f f}^{c}$
0.00	0.0000 (0.00%)	0.0000 (0.00%)
1.05	0.1381 (−0.07%)	0.1595 (−0.08%)
16.78	0.5528(−0.03%)	0.6384 (−0.04%)
134.22	1.5639 (−0.01%)	1.8058 (−0.02%)
268.44	2.2117 (−0.01%)	2.5539 (−0.02%)
536.87	3.1279 (0.00%)	3.612 (−0.01%)
1000.00	4.2689 (0.00%)	4.9293 (−0.01%)

Remarks

The total creep time for this test is 1000 hours. The times listed in the above table are the times calculated by the Abaqus automatic time stepping algorithm with CETOL = 5. × 10⁻³.

Input files

ncraar8x.inp: CPS8R elements.
