Adding an Excel Component to the Simulation Process Flow
You will now add an Excel workbook using the Excel component editor.
This editor allows you to specify a workbook (which is then loaded in
the component editor’s emulator) and to map parameters from the contents
of the workbook.
Click the Application Components tab in the component palette. The component
palette is located on the Sim-flow tab below the
component title bar and toolbar (near the center of the Design Gateway).
When the Application Components tab is selected, the component palette displays
all the currently loaded application
components available in Isight.
Application
components take in input parameters, perform some function external to
Isight,
and provide new values to output parameters. The choice of components
changes according to the tab that is selected.

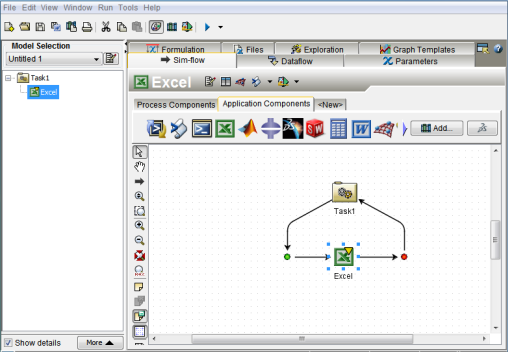

Drag-and-drop the Excel icon onto the red line on the simulation process flow
canvas.
Isight
adds the Excel component to the simulation process flow.
