Defining Design Variables (DV_SIZING)

For each optimization problem, the design variables represent the values to be changed during the optimization.

This task shows you how to:

See Also
In Other Guides
DV_SIZING

Context:

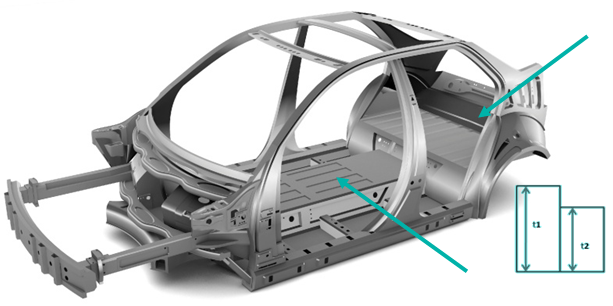

The elemental thicknesses of shell elements are the design variables for the sizing optimization in SIMULIA Tosca Structure. The thicknesses change during the optimization in order to fulfill the optimization goals. The following figure shows design variables for sizing:



Valid design elements are the most typical shell elements. The list of valid element types for sizing is given in Solver Specific Features.

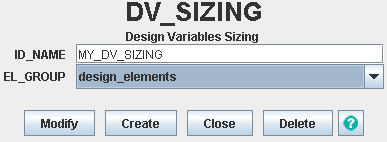

Design Variable Definition in Tosca Structure.gui

  1. Choose Command > DV_SIZING.
  2. Assign a previously defined Element group to be the design element group for the sizing optimization. The element group must be a group of elements which are allowed as design elements for the sizing optimization.

SIMULIA Tosca Structure Parameter File

The resulting command is the DV_SIZING command:

DV_SIZING
 ID_NAME  = dv_design_elem
 EL_GROUP = design_elem
END_
