Visualize Topology Optimization Results

In case of topology optimization, the files produced by Tosca Structure.report contain all optimization steps. In each step, only the elements with the material value above a certain limit are displayed.

This limiting value is set to 0.05 but it might be changed in the parameters to Tosca Structure.report: It is the value of the FILTER MIN field of CONTOUR_PLOT PARAMETERS dialog.

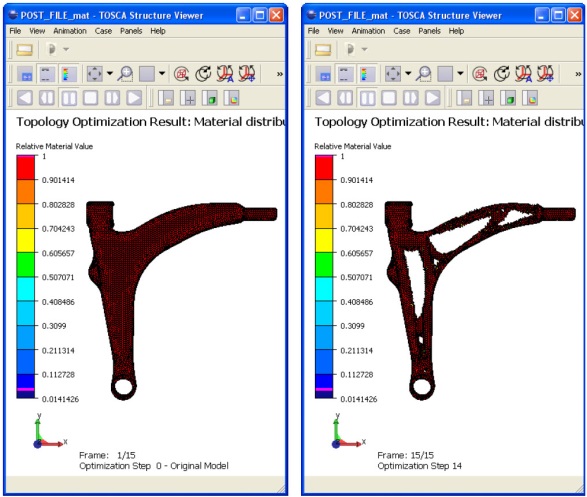

The following figure shows the first and the last iterations of a topology optimization:
