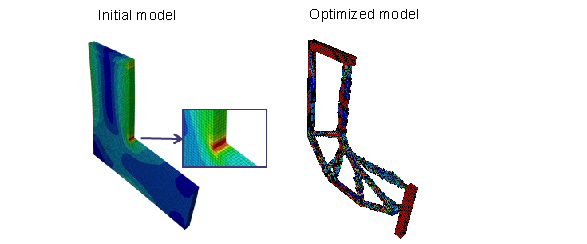

Minimizing the Material Volume with Stress Constraint

Within this section, an example is presented where the material volume is minimized under a stress constraint.

See Also
Stress in Topology Optimization

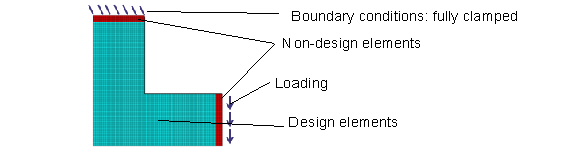

The described example uses the following model:

(Design elements are shown in blue, the elements in red are defined as nondesign elements due to loads and boundary conditions.)



The optimization setup is to minimize material volume having a constraint on the ‘Maximum von Mises stress.’

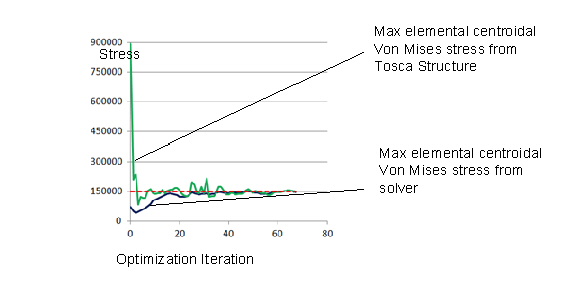

The following diagram shows the difference between the maximal elemental centroidal von Mises stress from the solver and from SIMULIA Tosca Structure:
