About Rib Design

The rib restriction gives the user the possibility to obtain optimization results that contain rib patterns.

The rib pattern restriction forces the optimizer to prevent material accumulation and generate substructures in the form of ribs. The thickness of the individual ribs and the distances between ribs are averaged over the design area and can be controlled in the restriction definition. The direction of the ribs is here defined as the out-of-plane growth direction of the ribs. The rib height depends on the design domain since the full height in the defined rib direction is used. This should be taken into account when defining an additional volume/weight constraint.

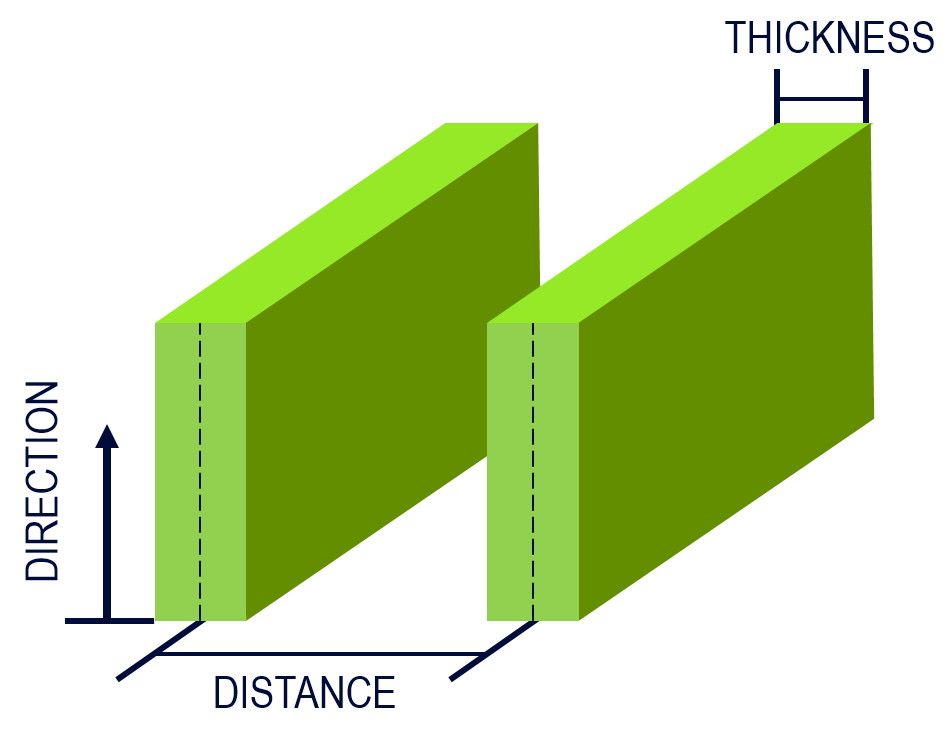

The following figure shows the quantities that need to be defined for a rib restriction:
