Ramping of initial stress | ||||||
|
| |||||
Products Abaqus/Explicit
Problem description
In Abaqus/Explicit you can define ramping of initial stresses for different types of elements in order to introduce the initial stresses gradually based on an amplitude definition. This method helps to reduce initial oscillations in the solution when the initial stress field is not in perfect equilibrium with the external loads. This capability is tested for different element types and materials.
Results and discussion

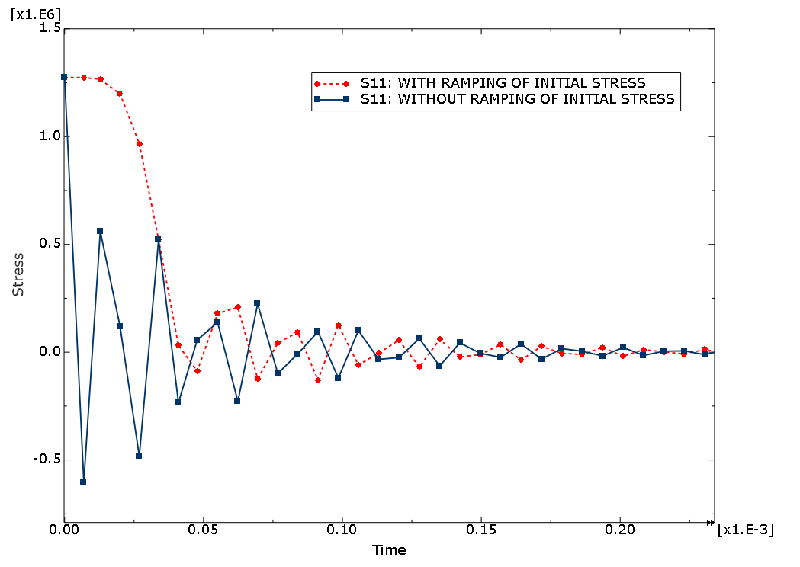

Each test consists of two elements of the same type and with the same material definition (either hyperelastic or plastic). The ramping of initial stress is defined for one of the elements, and the stress history results are compared between the two elements. In each case, it is verified that the initial oscillations in the solution are reduced for the element that includes ramping of initial stresses. Figure 1 shows the results for the case of two C3D8R elements with hyperelastic response.
Input files
- rampinistress-c3d8r-hyper.inp
-
Ramping of initial stress test for C3D8R element with hyperelastic material.
- rampinistress-c3d8r-mises.inp
-
Ramping of initial stress test for C3D8R element with plastic material.
- rampinistress-c3d8-hyper.inp
-
Ramping of initial stress test for C3D8 element with hyperelastic material.
- rampinistress-c3d8-mises.inp
-
Ramping of initial stress test for C3D8 element with plastic material.
- rampinistress-cpe4.inp
-
Ramping of initial stress test for CPE4 element with elastic material.
- rampinistress-t6m.inp
-
Ramping of initial stress test for CPE6M element with elastic material.
- rampinistress-cax6m.inp
-
Ramping of initial stress test for CAX6M element with elastic material.
- rampinistress-s4r.inp
-
Ramping of initial stress test for S4R element with elastic material.
- rampinistress-s4rs.inp
-
Ramping of initial stress test for S4RS element with elastic material.
- rampinistress-b31.inp
-
Ramping of initial stress test for B31 element with elastic material.
