Executing the Performance Component and Viewing the Results

You can execute each component individually after you configure it to make sure there are no errors.

  1. Right-click the Performance Simcode component, and select Run > Run Component.

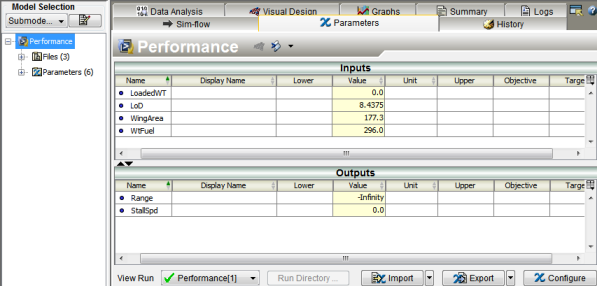

  2. Click the Parameters tab.

    You can use the tab to see the input parameters that were read by the executable and the output parameters that were calculated by the executable.

  3. From the File menu, select Close Window to close the Runtime Gateway and to return to the Design Gateway.
